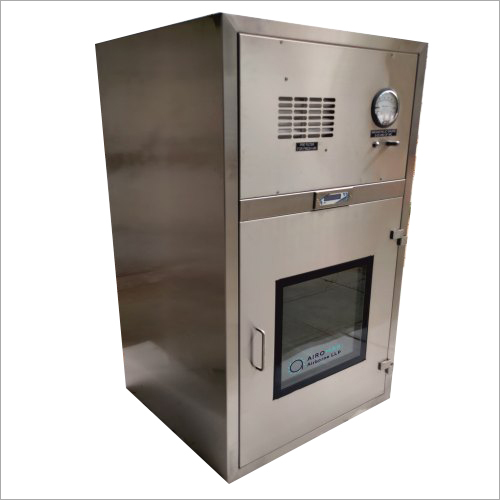

Dynamic Pass Box - 450 X 450 X 450

Dynamic Pass Box - 450 X 450 X 450

60000 INR/Unit

Product Details:

  • Air Flow Vertical Down Unidirectional Laminar Air Flow (Recirculated) ft/min (LFM) ft/min (LFM)
  • Application Pharmaceuticals,Healthcare,Medical,Aerospace,Electronics etc.
  • Lighting 300 LUX - Fluorescent Illumination LED Light
  • Voltage 230 Volt (v) Volt (v)
  • Material Stainless steel
  • Dimension(L*W*H) 450x450x450 mm Millimeter (mm) Millimeter (mm)
  • Floor Floor Mounted / Wall Mounted
  • Supply Ability : 3 Per Day
  • Click to view more
X

Price And Quantity

  • 1 Unit
  • 60000 INR/Unit

Product Specifications

  • Vertical Down Unidirectional Laminar Air Flow (Recirculated) ft/min (LFM) ft/min (LFM)
  • Pharmaceuticals,Healthcare,Medical,Aerospace,Electronics etc.
  • 300 LUX - Fluorescent Illumination LED Light
  • HEPA Filter
  • Floor Mounted / Wall Mounted
  • 230 Volt (v) Volt (v)
  • Stainless Steel
  • Pass Box
  • Stainless steel
  • 0.3 Micron HEPA Filter with Efficiency 99.99%
  • 450x450x450 mm Millimeter (mm) Millimeter (mm)

Trade Information

  • Cash Advance (CA)
  • 3 Unit Per Day
  • 7 Days
  • Yes
  • Within a certain price range free samples are available
  • free bubble wrap
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • All India

Product Description

Specification:

Size

450 MM X 450 MM X 450 MM

Air Flow

Vertical Down Flow (Recirculated)

Air Velocity

0.45 ± 0.05 MPS (90 ± 20 FPM) - 6" From HEPA Grill

Class / ISO

Class 100 / ISO 5 requirements as per ISO 14644-1:1999 (E)

MOC
(Material of Construction)

1mm, Stainless Steel, Grade SS 304 / SS 316 / SS 316L
PVC Coated Sheet, Matte Finish No. 4
Pencil Coving for Internal Working Area (Radius 20 mm)
SS 304 Door Hinges and Door Handles

HEPA Filter

H14 Grade Efficiency 99.999% at 0.3µm

Pre-Filter

G4 Grade, Efficiency 90% Down to 10μm

Motor Blower

Centrifugal Type DIDW, Dynamic or Equivalent

Magnehelic Gauge

1 No., Range: 0-25 WC, Make : Sensocon or Equivalent

Controller & Door Interlocking

Electro Magnetic Door Interlocking (100 LBS Magnets)
UV Hour Meter Indication
Process Lock Timer
Door Open/Close Delay Alarm Features
Password Protection

Display

2 Nos., Feather Touch Digital 2 Line Display Both side

Fluorescent LED Light

8W, 1 Feet, 1 No., Polycab or Equivalent

UV Light

11W, 1 Feet, 1 No.,Philips

View Panel

Double Side 5mm Toughened Glass, 4 Nos.

DOP/PAO Test Port:

1 No., SS 304

Atmospheric Nozzle

1 No., SS 304

Noise Level

Less than 68 dB on scale

Vibration

Minimum

Power Source

230V, 50 Hz, Single Phase

Documentation

DQ - Design Qualification
IQ - Installation Qualification
OQ - Operational Qualification
O&MM - Operarion and Maintenance Manual
MOC Certificate
Controller Certificate
Differential Pressure Gauge Test Certificate
HEPA Filter and Pre Filter Test Certificate
Motor Blower Test Certificate
Other Required Certificate

Areas of Application

Pharmaceutical Industries
Hospitals and Medial
Microbiology Laboratories
Chemical Research Laboratories
Food Processing Industries
Electronics Industries

Optional Features & Accessories

Flame Proof Design & Construction
Three Way Dynamic Pass Box
L Type Construction
Support Stand for Pass Box Mounting
UV Hour Meter (External)
Digital Differential Pressure Gauge with Alarm Hour Meter
Extra UV Light and Fluorescent LED Light
