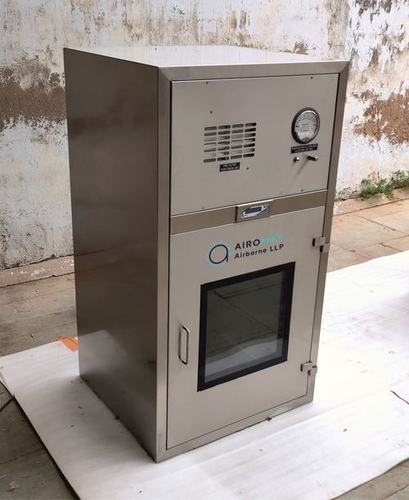

Pass Box
Product Details:
- Floor floor mounted / wall mounted
- Type Pass Box
- Lighting 300 LUX - Fluorescent Illuminar
- Dimension(L*W*H) 1.5 feet x 1.5 feet x 1.5feet Foot (ft)
- Door stainless steel sandwich type
- Feature Electromagnetic Door Interlocking
- Supply Ability : 3 Per Day
- Click to view more
Price And Quantity
- 1 Unit
- 60000 INR/Unit
Product Specifications
- 1.5 feet x 1.5 feet x 1.5feet Foot (ft)
- Electromagnetic Door Interlocking
- 300 LUX - Fluorescent Illuminar
- Pass Box
- floor mounted / wall mounted
- stainless steel sandwich type
Trade Information
- Cash Advance (CA)
- 3 Unit Per Day
- 7 Days
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
- All India
Product Description
Key Features and Specifications
- Design according to GMP Guidelines
- Easy to Clean and to disinfect
- EN ISO 14644 Compliance
- Electromagnetic Door Interlocking System
- No Sharp Edges
- Pencil Coving for Internal Working Area
- Sturdy Built Doubled Skin Body
- Advanced airtightness
- Easy Integration
- Less than 65 dB Sound Level on scale
- Minimum Vibration Level
- MOC as SS 304, SS 316 or SS 316L
- Feather Touch Display Each Side
- Fluorescent Illumination LED Light
- UV Light for Disinfection
- Process Lock Timer (Inbuilt)
- Door Open/Close Delay Alarm (Inbuilt)
- UV Hour Meter (Inbuilt)
- SS 304 Door Hinges and Door Handles
- 30 MM Double Skin Doors with View Panel
- 5 MM Toughened Glass as View Panel
- Power Supply 220-240V, 50 Hz, Single Phase
Mounting
- Wall Mounting
- Stand Mounting
- Floor Mounting
Documentation
- Design Qualification
- Installation Qualification
- Operational Qualification
Certificates
- M.O.C. Certificate
- Test Certificate for Controller
- Other Required Certificates
Optional Features & Accessories
- Flame Proof Design & Construction
- Three Way Static Pass Box
- L Type Construction
- Support Stand for Pass Box Mounting
- UV Hour Meter (External)
- Digital Differential Pressure Gauge with Alarm Hour Meter
- Extra UV Light and Fluorescent LED Light
Areas of Application
- Pharmaceutical Industries
- Hospitals and Medial
- Microbiology Laboratories
- Chemical Research Laboratories
- Food Processing Industries
- Electronics Industries
Product Details
Product Type | High Quality |
Usage/Application | Pharmaceuticals,Healthcare,Medical,Aerospace,Electronics etc. |
Size | 350 mm X 350 mm X 350 mm |
Material | Stainless Steel,Grade SS 304,SS 316,SS 316L |
Brand | AiroMax |
Surface Finishing | Matte Finish No. 4 |
Controller Type | Electromagnetic Door Interlocking with UV Hour Meter Indication |
Noise Level | Less than 65 dB |
Velocity | 6" From HEPA Grill,0.45MPS (90 FPM) |
Display Type | Feather Touch Digital Display 2 Nos. Both side |
Power Source | 220-240V,50 Hz,Single Phase |
Country of Origin | Made in India |
Air Flow | Vertical Down Unidirectional Laminar Air Flow (Recirculated) |
Class | Class 100 (ISO Class 5) |
HEPA Filter | H14 Grade,Efficiency 99.999% Down to 0.3 Micron |
Pre Filter | G4 Grade,Efficiency 90% Down to 10 Micron |
Motor Blower | Centrifugal Type / Backward Curved Type |
Magnehelic Gauge | 1 No.,Range : 0-25 mm of WC |
DOP / PAO Test Port | 1 No.,SS 304 |
Atmospheric Nozzle | 1 No.,SS 304 |
Fluorescent LED Light | 8W,1 Feet,1 No.,Polycab or Equivalent |
UV Light | 11W,1 Feet,1 No.,Philips |
Lux Level | 300 Lux at Working Area |
Documentation | DQ,IQ,OQ Documents,Operation and Maintenance Manual along with all Certificates |
