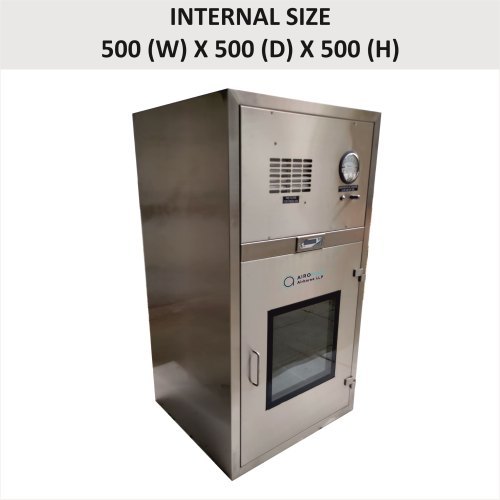

Dynamic Pass Box - 500 X 500 X 500

Dynamic Pass Box - 500 X 500 X 500

70000 INR/Unit

Product Details:

  • Lighting 300 LUX - Fluorescent Illumination LED Light
  • Air Flow Vertical Down Unidirectional Laminar Air Flow (Recirculated) ft/min (LFM) ft/min (LFM)
  • Dimension(L*W*H) 500x500x500 mm Millimeter (mm) Millimeter (mm)
  • Type Pass Box
  • Filter Type HEPA Filter
  • Filters 0.3 Micron HEPA Filter with Efficiency 99.99%
  • Floor Floor Mounted / Wall Mounted
  • Supply Ability : 3 Per Day
  • Click to view more

Price And Quantity

  • 1 Unit
  • 70000 INR/Unit

Product Specifications

  • Pharmaceuticals,Healthcare,Medical,Aerospace,Electronics etc.
  • 230 Volt (v) Volt (v)
  • Floor Mounted / Wall Mounted
  • Stainless Steel
  • Stainless steel
  • HEPA Filter
  • 0.3 Micron HEPA Filter with Efficiency 99.99%
  • 300 LUX - Fluorescent Illumination LED Light
  • Vertical Down Unidirectional Laminar Air Flow (Recirculated) ft/min (LFM) ft/min (LFM)
  • 500x500x500 mm Millimeter (mm) Millimeter (mm)
  • Pass Box

Trade Information

  • Cash Advance (CA)
  • 3 Unit Per Day
  • 7 Days
  • Yes
  • Within a certain price range free samples are available
  • free bubble wrap
  • Africa, Middle East, Western Europe, Eastern Europe, South America, Central America, Australia, Asia
  • All India

Product Description

Dynamic Pass Box is fixed between two clean room areas having different or same grade/class of air. It is also known as active pass box. It includes all basic features of static pass box and in addition to, Material is passed through vertically HEPA filtered ISO 5/Class 100 Air. It acts like a laminar flow unit. Clean air enters the pass box and blocks the contaminants to enter. Dynamic Pass Box consists of Re-circulated filtration system and is designed according to GMP guidelines. Differential Pressure gauge is also provided to check the Differential Pressure across HEPA Filter, it helps to know about HEPA replacement after 25 mm of WC pressure drop. Provision of DOP/PAO Test Port is for HEPA Filter leak test and Particle Count.



500 MM X 500 MM X 500 MM

Air Flow

Vertical Down Flow (Recirculated)

Air Velocity

0.45 ± 0.05 MPS (90 ± 20 FPM) - 6" From HEPA Grill

Class / ISO

Class 100 / ISO 5 requirements as per ISO 14644-1:1999 (E)

(Material of Construction)

1mm, Stainless Steel, Grade SS 304 / SS 316 / SS 316L
PVC Coated Sheet, Matte Finish No. 4
Pencil Coving for Internal Working Area (Radius 20 mm)
SS 304 Door Hinges and Door Handles

HEPA Filter

H14 Grade Efficiency 99.999% at 0.3µm


G4 Grade, Efficiency 90% Down to 10μm

Motor Blower

Centrifugal Type DIDW, Dynamic or Equivalent

Magnehelic Gauge

1 No., Range: 0-25 WC, Make : Sensocon or Equivalent

Controller & Door Interlocking

Electro Magnetic Door Interlocking (100 LBS Magnets)
UV Hour Meter Indication
Process Lock Timer
Door Open/Close Delay Alarm Features
Password Protection


2 Nos., Feather Touch Digital 2 Line Display Both side

Fluorescent LED Light

8W, 1 Feet, 1 No., Polycab or Equivalent

UV Light

11W, 1 Feet, 1 No.,Philips

View Panel

Double Side 5mm Toughened Glass, 4 Nos.

DOP/PAO Test Port:

1 No., SS 304

Atmospheric Nozzle

1 No., SS 304

Noise Level

Less than 68 dB on scale



Power Source

230V, 50 Hz, Single Phase


DQ - Design Qualification
IQ - Installation Qualification
OQ - Operational Qualification
O&MM - Operarion and Maintenance Manual
MOC Certificate
Controller Certificate
Differential Pressure Gauge Test Certificate
HEPA Filter and Pre Filter Test Certificate
Motor Blower Test Certificate
Other Required Certificate

Areas of Application

Pharmaceutical Industries
Hospitals and Medial
Microbiology Laboratories
Chemical Research Laboratories
Food Processing Industries
Electronics Industries

Optional Features & Accessories

Flame Proof Design & Construction
Three Way Dynamic Pass Box
L Type Construction
Support Stand for Pass Box Mounting
UV Hour Meter (External)
Digital Differential Pressure Gauge with Alarm Hour Meter
Extra UV Light and Fluorescent LED Light
