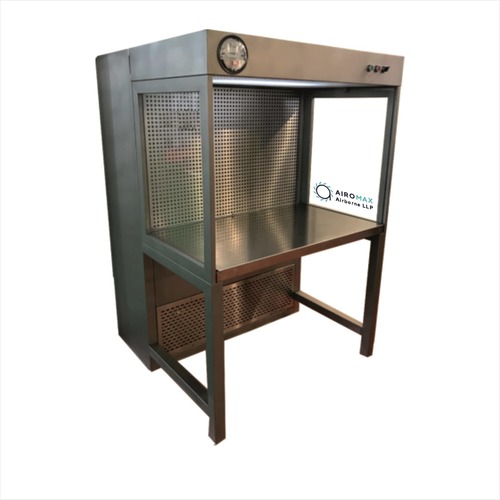

Horizontal Laminar Air Flow Unit - 3 X 2 X 2 (HLAF)

Horizontal Laminar Air Flow Unit - 3 X 2 X 2 (HLAF)

75000 INR/Unit

Product Details:

X

Price And Quantity

  • 75000 INR/Unit
  • 1 Unit

Trade Information

  • Cash Advance (CA)
  • 1 Unit Per Day
  • 7 Days
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • All India

Product Description

The Horizontal Laminar Flow workstation is designed specifically for highest product protection by providing ISO Class 5 particle free work area for handling critical process. The main HEPA filter is situated immediately behind the working area; clean air is then blown across the work surface towards the operator. The work area is continuously supplied with positive pressure HEPA filtered horizontal air flow. It prevents contamination from operator and environment to work area. The laminarity of the flow prevents cross contamination between the items handled in the working space.

These units are suitable for the handling of non-hazardous products, sensible to dust and/or to contamination wherever operator protection is not required.

Horizontal Laminar Air Flow Unit is with a variety of standard dimensions also our cabinet can be custom engineered to any size. Horizontal Laminar air flow are available in powder coated Mild Steel, SS 304 / 316 / 316L or a combination of both.



Specification

Country of Origin

Made in India

Brand

Airomax

Type

Horizontal

Material

MS (GI) Powder Coated with SS 304

Surface Finish

Matte Finish No. 4

Power Supply

220-240 Volts,50 Hz,Single Phase

Noise Level

Less than 65 Db on scale

Air Flow

Unidirectional Class 100 / ISO 5 Horizontal Flow

Velocity

6" From HEPA Grill,0.45 +- 0.05 mps (90 +- 20 FPM)

Working Area

3 Feet (Width) X 2 Feet (Depth) X 2 Feet (Height)

Air Cleanliness

Class 100 requirements as per ISO-14644

Pressure Gauge

Magnehelic Gauge,1 No.,0-25 WC

Vibration Level

Minimum

Model Name/Number

HLAF-3X2X2

Fan Motor

Centrifugal Type / Backward Curved Type

MOC

MS (GI) Powder Coated with SS 304,1mm with 40 X 40 Square pipe structure

Pre Filter

G4 grade with efficiency of 90-95% at 10 Micron

Work Table

1 mm,SS 304,Matte Finish

Front Sash

Polycarbonate

Side Panel

6 mm PC X 2 Nos.

HEPA Filter

H14 Grade efficiency 99.997% at 0.3 Micron

DOP/PAO Test Port

1 No.,SS 304

Magnehelic Pressure Port

1 No.,SS 304

Gas Cock

1 No.,SS 304

Castor Wheels

4 Nos.

Control

ON/OFF Switches for Blower,LED/UV Control

Fluorescent LED Light

2 Feet X 1 No.

UV Light

1.5 Feet X 1 No.

Auxiliary Power Socket

5-15 A,1 No.

Alarm System

Audio Alarm / Blower Trip

Documentation

DQ,IQ,OQ along with complete set of Certificates
