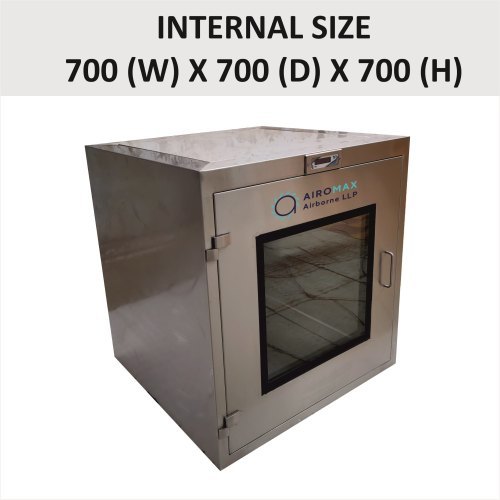

Static Pass Box - 700 X 700 X 700

Static Pass Box - 700 X 700 X 700

63000 INR/Unit

Product Details:

  • Lighting 300 LUX - Fluorescent Illumination LED Light
  • Type Pass Box
  • Feature Electromagnetic Door Interlocking System
  • Floor Floor Mounted / Wall Mounted
  • Application Pharmaceutical Industries, Hospitals and Medial, Microbiology Laboratories, Chemical Research Laboratories, Food Processing Industries, Electronics Industries
  • Material Stainless steel
  • Dimension(L*W*H) 700 mm X 700 mm X 700 mm Millimeter (mm) Millimeter (mm)
  • Supply Ability : 3 Per Day
  • Click to view more
X

Price And Quantity

  • 63000 INR/Unit
  • 1 Unit

Product Specifications

  • Stainless Steel Sandwich Type Door with View Panel
  • 700 mm X 700 mm X 700 mm Millimeter (mm) Millimeter (mm)
  • Stainless steel
  • Pharmaceutical Industries, Hospitals and Medial, Microbiology Laboratories, Chemical Research Laboratories, Food Processing Industries, Electronics Industries
  • Electromagnetic Door Interlocking System
  • Floor Mounted / Wall Mounted
  • Pass Box
  • 300 LUX - Fluorescent Illumination LED Light

Trade Information

  • Cash Advance (CA)
  • 3 Unit Per Day
  • 7 Days
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • All India

Product Description

Static Pass box is used to transfer the materials from one side to other side through a controlled environment in order to avoid cross contamination of airborne particles. It is fixed between two cleanroom areas having same grade/class of air. It prevents the entrance of contaminants in the sterile area. Door Interlocking is the primary feature of a pass box, when one side door is open the other side door remains closed. It is also known as Cleanroom Pass Through box, Hospital Pass box, Passive Pass Box, Hatch Box and Transfer Hatch etc.

Specification

Size

700 mm x 700 mm x 700mm

MOC
(Material of Construction)

1mm, Stainless Steel, Grade SS 304 / SS 316 / SS 316L
PVC Coated Sheet, Matte Finish No. 4
Pencil Coving for Internal Working Area (Radius 20 mm)
SS 304 Door Hinges and Door Handles

Controller & Door Interlocking

Electro Magnetic Door Interlocking (100 LBS Magnets)
UV Hour Meter Indication
Process Lock Timer
Door Open/Close Delay Alarm Features
Password Protection

Display

2 Nos., Feather Touch Digital 2 Line Display Both side

Fluorescent LED Light

8W, 1 Feet, 1 No., Polycab or Equivalent

UV Light

11W, 1 Feet, 1 No.,Philips

View Panel

Double Side 5mm Toughened Glass, 4 Nos.

Power Source

230V,50 Hz,Single Phase

Documentation

DQ - Design Qualification
IQ - Installation Qualification
OQ - Operational Qualification
O&MM - Operarion and Maintenance Manual
MOC Certificate
Controller Certificate
Other Required Certificate

Areas of Application

Pharmaceutical Industries
Hospitals and Medial
Microbiology Laboratories
Chemical Research Laboratories
Food Processing Industries
Electronics Industries

Optional Features & Accessories

Flame Proof Design & Construction
Three Way Static Pass Box
L Type Construction
Support Stand for Pass Box Mounting
UV Hour Meter (External)
Digital Differential Pressure Gauge with Alarm Hour Meter
Extra UV Light and Fluorescent LED Light
