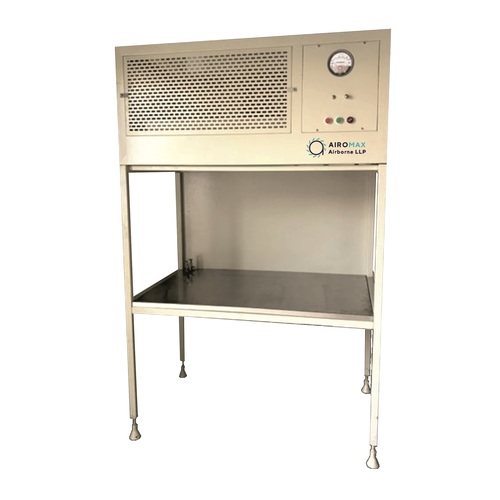

Vertical Laminar Air Flow Cabinet

Product Description

Vertical Laminar Air Flow Cabinet

ISO Class 5 Air Environment For Product Protection

Airomax Laminar Airflow Workstations are constructed using superior designs and manufacturing Processes to provide reliable product protection. Airomax innovations in airflow management, Ergonomics, control systems, and highly efficient components result in an effective, long-lasting product.

Key Features and Specifications

- Vertical Flow

- MOC as SS 304, SS 316 or SS 316L

- 90 FPM Velocity at 150 mm From HEPA Filter Face, (0.45 m/s)

- 0.3 micron Minipleat Box Type H14 Grade HEPA Filter with Efficiency 99.999%

- 10 micron Flange Type EU4 Grade HEPA Filter with Efficiency 90%

- Analog Type Differential Pressure Gauge with Range: 0 to 25 mm of WC

- Motor Blower Single Inlet or Double Inlet Centrifugal Type

- Speed Variable to adjust the speed of Blower

- 300 LUX - Fluorescent Illumination LED Light

- ON / OFF Push Button with Audio Alram For Blower Tripping

- UV Light for Disinfection

- Power Supply 220-240V, 50 Hz, Single Phase

Construction

- Polycarbonate Side Panels

- Easy to Clean and to disinfect, Design according to GMP Guidelines and EN ISO 14644 Compliance

- No Sharp Edges

- Less than 65 dB Sound Level on scale

- Minimum Vibration Level

- Front Sash with Acrylic or Polycarbonate

- SS 304 DOP/PAO Test Port (For HEPA Filter Testing) and Atmospheric Nozzle

Documentation

- Design Qualification

- Installation Qualification

- Operational Qualification

Certificates

- Calibration Certificate for Differential Pressure Gauge

- Test Certificate for Motor Blower

- Test Certificate for HEPA Filter and Pre Filter

- Test Certificate for Controller

- M.O.C. Certificate (Material of Construction)

- Other Required Certificates and Drawings

Optional Features & Accessories

- Flame Proof Design & Construction

- SS 304 Gas Coke

- Switch Socket 5-15 A

- UV Hour Meter (External)

- Digital Differential Pressure Gauge with Alarm Hour Meter

- Extra UV Light and Fluorescent LED Light

- Digital 2 Line Feather Touch Display

- Castor Wheels at Bottom

- Arm Rest and Leg Rest

Performance Validation at Site

- Velocity Measurement

- HEPA Filter Leak Test

- Particle Counting

- Air Flow Pattern Test

- Recovery Test

Areas of Application

- Pharmaceutical Industries

- Hospitals and Medial

- Microbiology Laboratories

- Chemical Research Laboratories

- Food Processing Industries

- Electronics Industries
